For Light Electric Vehicles

Applications: Electric Bicycles, Electric Motorcycles, Golf Carts, Patrol Cars.

Features:

High drain battery packs, environmental-friendly;

High capacity, low internal resistance, long cycle life up to 1000 times;

The voltage, current and temperature of battery system can be measured

The dimension, protection board and the shell can be customer-made;

Excellent performance with high-current discharge and in high temperature environment.

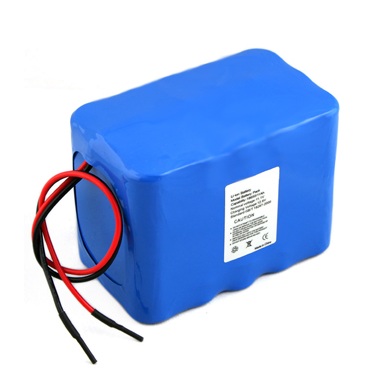

Product name:  24V11Ah Electric bike battery

Model No.      DF2411YY

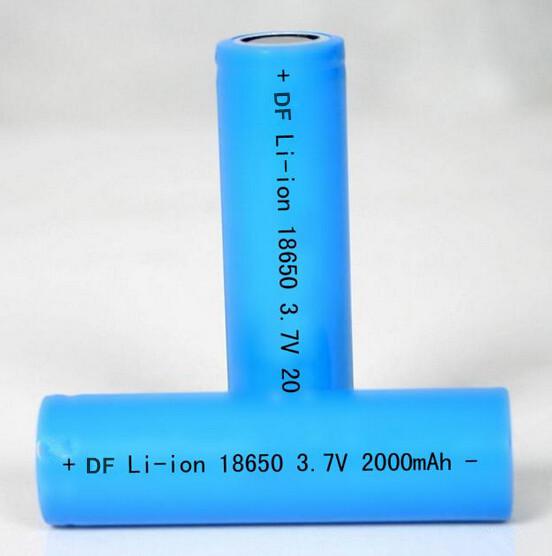

Cell type:       18650 & Lithium polymer

battery Pack:          7s5p

Nominal voltage:   24 V

Rated capacity:   11000 mAh

Main protection function:

Over charge, over discharge, over current, short circuit, high temperature protection.

Constant working current:  13-15 A

Over current protection:   25-30 A

Over charge protection:   29.4 V

Discharge voltage protection:   21 V

Charging mode:   CC ~ CV,power adapter optional

Charging voltage(max.):   29.4 V

Charging current:    2200 mAh

Working temperature: charge:    0~45 ℃

                                     discharge  -20~60 ℃

Weight:           2.5 kg

Cycle life:     600 times  with 80% capacity

All the battery pack are consist of Samsung brand cells.This ensure the stability and safety of the battery.
