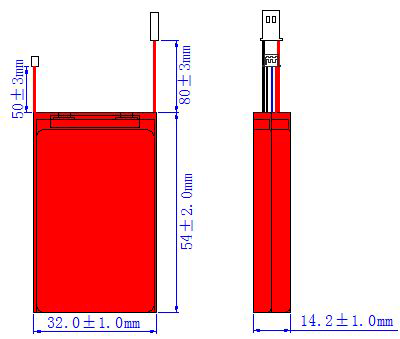

Battery dimension：

Rated capacity       800 mAh  0.5 C discharge

Min. capacity         784 mAh 0.5 C  discharge

Nominal voltage       7.4 V

Charging voltage      8.4 ± 0.04 V

Standard charge:      0.5 C ( 400 mA) 0~40 ℃

Fast charge:          1.0 C ( 800 mA)

Standard charge time :  3.0 hours , 2.0 hours (fast charge)

Charge current :     1.0 C ( 800 mA )  max.

Constant discharge current :  12.0 C ( 9.6 A ) 0~40 ℃

Cut-off voltage:         6.0 V

Internal resistance:       ≤ 80 mΩ

Weight:           43 g

Thickness:        14.2 ±1.0 mm

Width :            32.0 ±1.0 mm

                    Length: 54 ±2.0 mm

Working temperature: Charging  : 0 ~ 40℃

                       Discharge  : -20 ~ 40℃

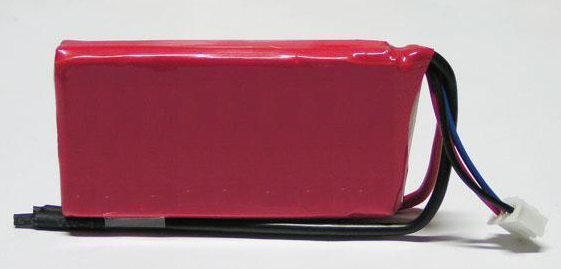

Battery with connector：

The battery should be stored in a cool,dry and well-ventilated area, and should be far from the fire and high temperature.

The best capacity in storage is 30%~ 50%(Voltage between 7.4V ~ 7.8V)

If stored for more than 6 months or longer,please charge the battery.
