GPR Battery
Model No.18650-6S8P/16Ah/22.2V。
PCBA specification：
Over charge voltage：4.35±0.25V
Over charge release：4.15±0.50V
Over discharge voltage：2.70±0.08V
Over discharge release 3.00±0.10V
Over current protection（10ms）：30~35A
Charge balance current：300±50mA
Charge balance voltage：4.20±25mV
High temperature protection（can be release）：70±5℃
Battery cycle life: 500~1000 times
Technical Specification
PCM：This battery pack applied special designed protection circuit：
Over charge, Over discharge, Short circuit and over current protection.Prevent battery from fire and explosion.
Protection IC：
The protection IC with real time detection function: over charge ,such as over discharge ,over current and short circuit protection. It ensured battery security and stability.
MOSFET：MOSFET is the auto switch, which keeps the voltage in a stable range.
Cell type： 18650/2000mAh/3.7V cell

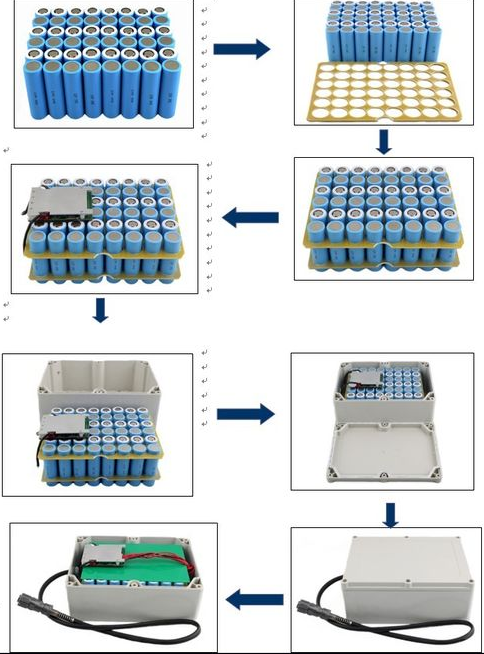

Assemble & internal structure of Battery
