Feature :

This battery should have enough power to start two motors of the forklift.

It is small in dimension and longer cycle life than ordinary battery.

Power of LiFePo Battery is 800W , instant power up to 1000W.



Technical parameters:

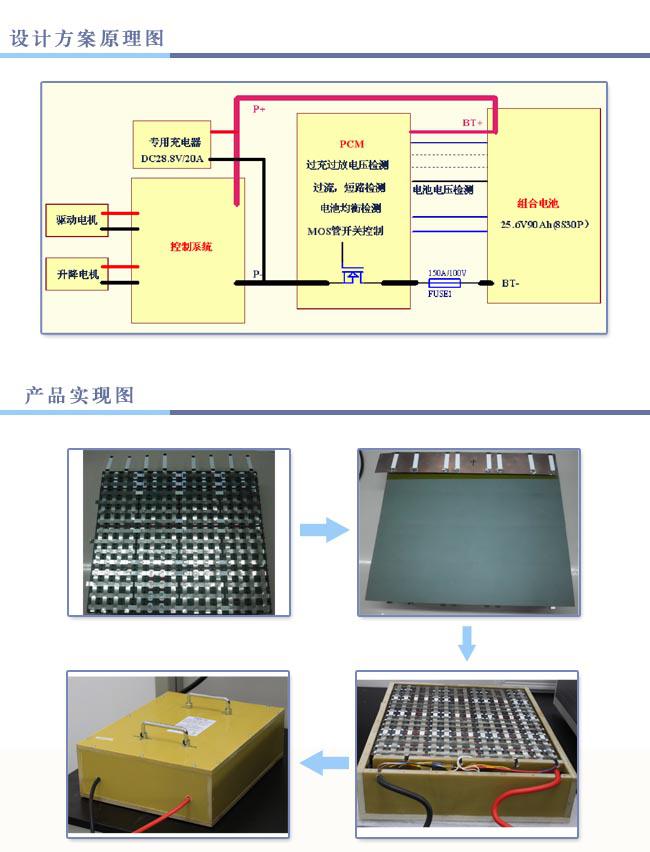

PCM：This battery pack applied special designed protection circuit：

Over charge, Over discharge, Short circuit and over current protection.Prevent battery from fire and explosion.

Protection IC：

The protection IC with real time detection function: over charge ,such as over discharge ,over current and short circuit protection. It ensured battery security and stability.

MOSFET：MOSFET is the auto switch, which keeps the voltage in a stable range.

Cell type: 26650/3.2V/3000mAh LiFePo Cell，maximum charge rate :1C Maximum discharge current : 2C，

Voltage and Capacity : 24V80Ah

Standard working current is 30A，maximum working current reach to 50A. Instant start-up current up to 120A.

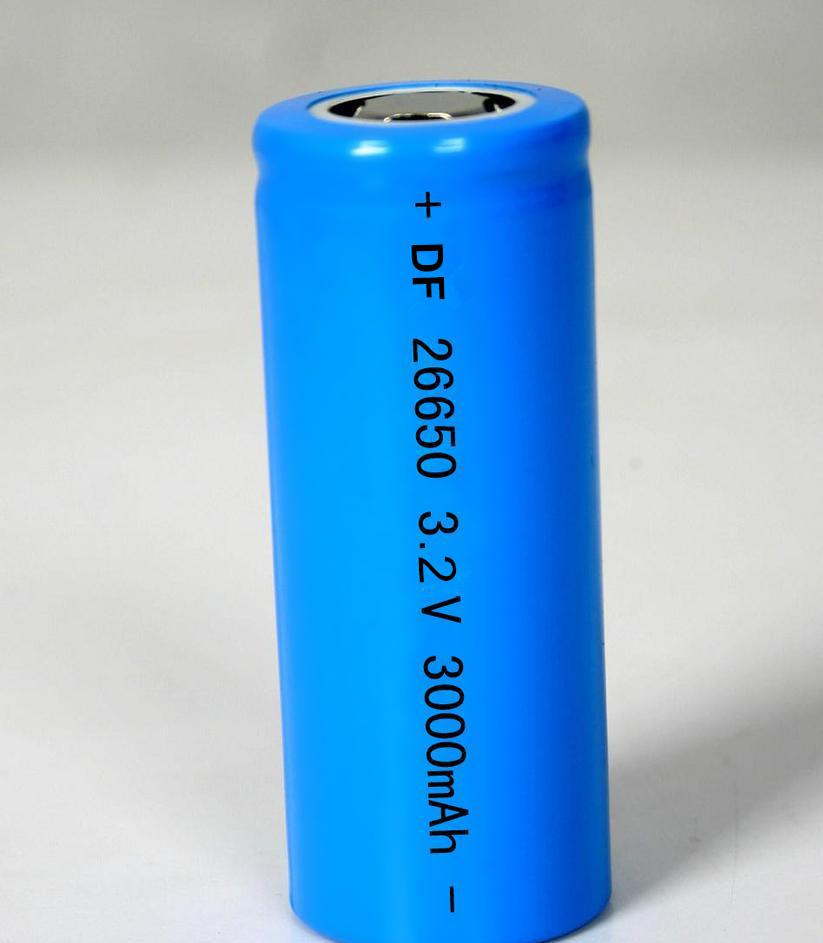

Picture of Cell ：  26650  3.2V  3000mAh
