Technical parameters:

This Melt Cutting machine should have high temperature protection function, if the temperature up to 70 ℃，the battery system will cut-off the power and action the self-protection. The maximum working current is between 15-20A, standard working current is 2~3 A.

This Battery with over current protection(25A), 7A continuous working current is 7A，6600mAh rated capacity .

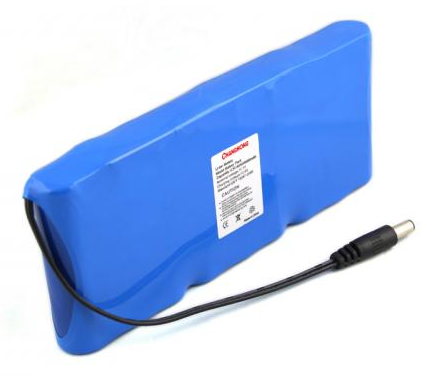

Battery pack ：18650-3S3P/6.6Ah/11.1V。

 specification :

a.Over charge voltage：   4.35±0.025V

b.Over charge release：   4.15±0.050V

c. Over discharge voltage：2.40±0.08V

d.Over discharge release： 3.00±0.10V

e.Over current protection（10ms）：30~35A

f. High temperature protection：70±5℃

g.Battery pack has short circuit protection and reverse charge charge protection

Battery cycle life: 300~500 times



PCBA Specification:

PCM：This battery pack applied special designed protection circuit：

Over charge, Over discharge, Short circuit and over current protection.Prevent battery from fire and explosion.

Protection IC：

The protection IC with real time detection function: over charge ,such as over discharge ,over current and short circuit protection. It ensured battery security and stability.

MOSFET：MOSFET is the auto switch, which keeps the voltage in a stable period.

Temperature switch: It’s designed for thermal detection and protection. When the temperature of the battery up to the range of 70 ± 5 ℃, temperature switch will cut of the current to protect the battery.

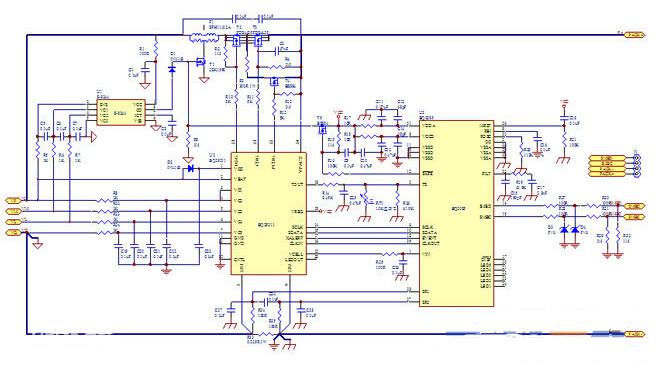

Technical Diagram:
