Specification of Battery

Battery pack：ICR18650-6S4P

Rated capacity: 8800mAh (0.2C charge)

Charge cut-off Voltage:  25.2V



Nominal Voltage: 22.2V

Charge mode:  CC-CV

Standard charge current: 1760mA

Fast charge current : 4400mA

Standard charge : 7.5hours

Fast charge : 3hours

Maximum Discharge current：4400mA

Discharge cut-off Voltage:  14.4V

Internal Resistance:  ≤580mΩ

Weight:  1150g max

Dimension: Thickness: 38.5mm Width: 40mm  Length: 400mm max

Working temperature : charge: 0 to 45℃

Discharge : -20 to 60℃

Storage temperature: over 1 year: -20~20℃

within 3 months:     -20~40℃(

Within 1 month:  -20~50℃

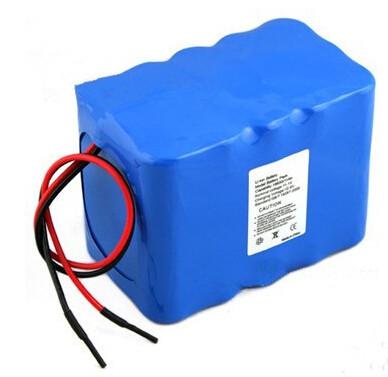

Picture of Battery pack
