This type of battery should be lower consumption, longer cycle life and equip intelligent power switch system.

PCBA specification

Nominal voltage： 6V

Rated capacity： 6000mAh

Standard charge current：0.2C

Max charge current：0.5C

Discharge current：0.2C standard

Max. Discharge current ：0.5C

Working temperature：

Charge：0-45℃

Discharge：-20-60℃

Storage：23±5℃

Internal resistance：≤ 175mΩ

Battery dimension：MAX19×69mm

Weight：about 48.5g

Wire type：UL1007/20#, length:100mm（customized）

Protection IC ：

Over charge voltage/pack  ：4.25±0.03V

Over discharge voltage/pack：2.5±0.06V

Over current：3.34A

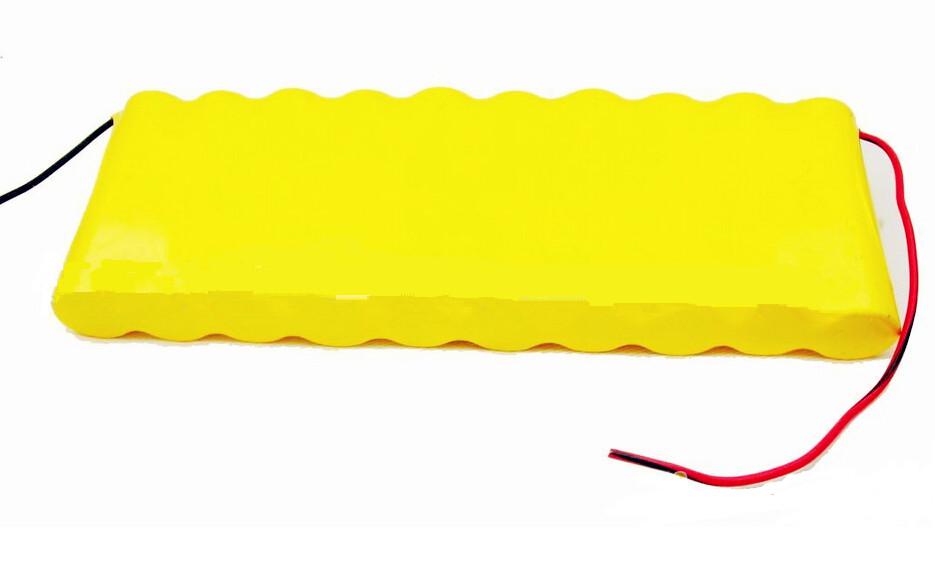

Battery pack ：（just for reference）
