1Brief Introduction

This Energy storage station has powerful functions. It applies to most of home applications power supply. This Energy Storage Station is

smaller in size, but higher in capacity. With intelligent MCU control mode. The key switch control each output, LED display. Adopt the

most advanced LiFePO4 battery technology, it providing AC pure sine wave current output. It supports AC and DC output at different

 voltage. Unique designed multi voltage outputs:DC5VDC/12VDC/19V, AC100V~240V different types voltage outputs in maximum

current.This feature is differs from other suppliers’ products. The

 maximum power output reach to 2400W it provide continuous power to different kinds of Appliances.

ApplicationsSmartphoneSatellite PhoneDigital CameraMobile Hard DiskVideo Camera, Laptop, LED Lighting Tablet PC,

Outdoor lighting, Water Pumps, Emergency Medical Equipment, Refrigerator, TV set.

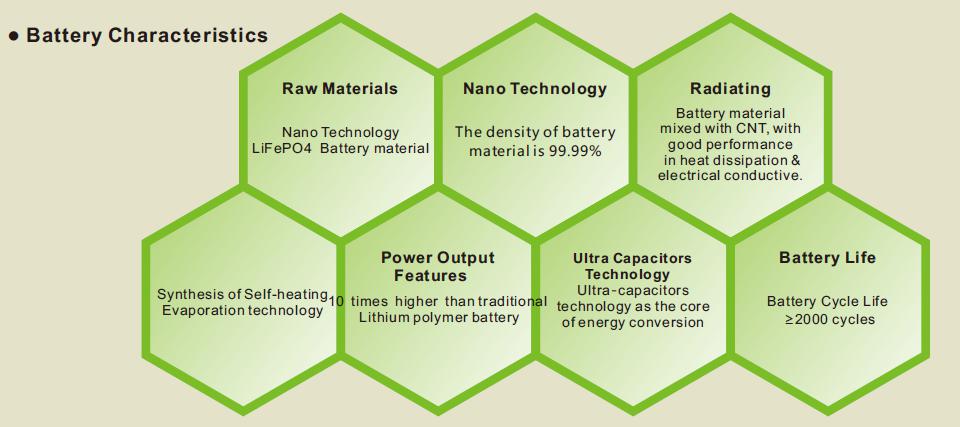

2. Product Features:

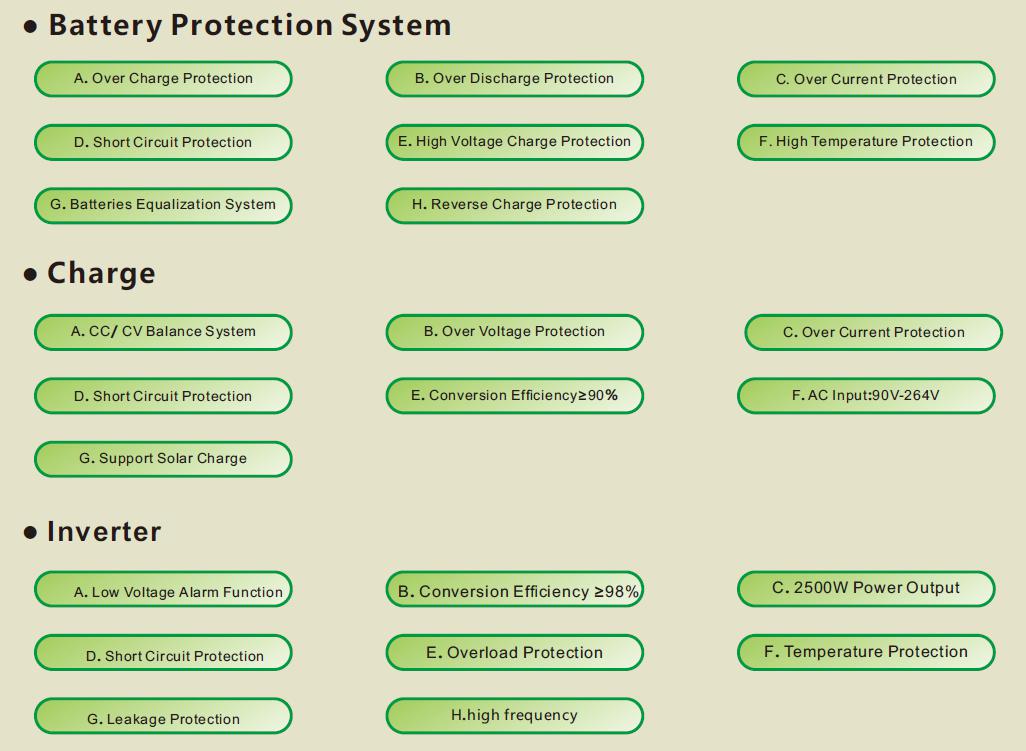

 3. Protection Function



 4. Working Time For Different Appliances

No

Appliances

Power Rating

(Wh)

Working Time

Hours

1

Air conditioner

1P(750W)

2.5

2

Washer

360W

5.5

3

Refrigerator

120W

16.5

4

Rice Cooker

605W

3

5

Desktop PC

350W

5.5

6

Laptop

75W

26.5

7

Tablet PC

15W

133

8

Cellphone

10W

200

9

Digital Camera

10W

200

10

Security system

400W

5

11

Electric Fan

60W

33

12

Lighting

9W

222

13

Soybean milk maker

180W

11

14

Electric Tool

20W

100

15

Water Dispenser

300W

6.5

16

Electric Kettle

1350W

1.5

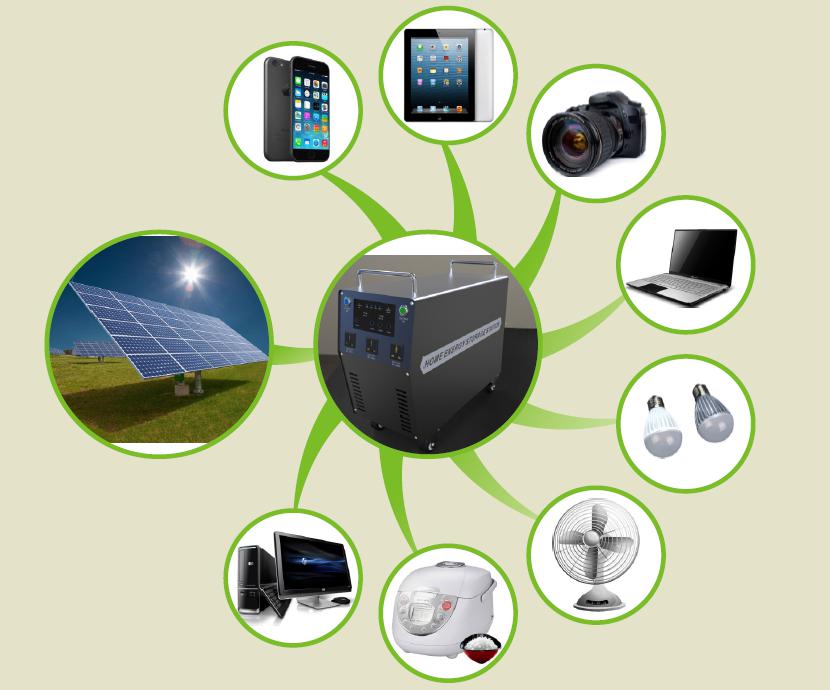

 5. Product Applications

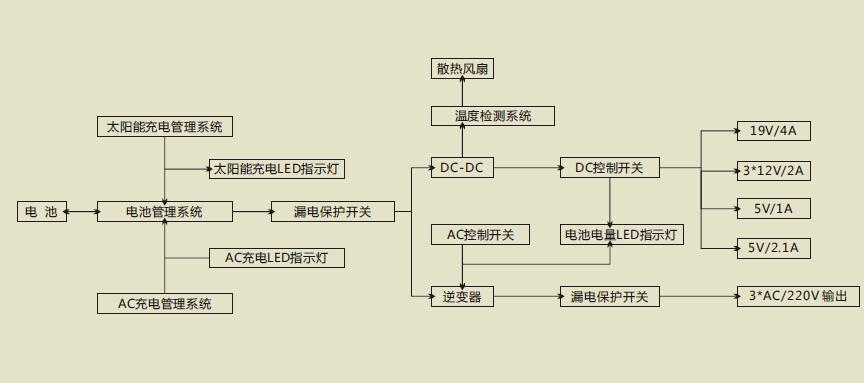

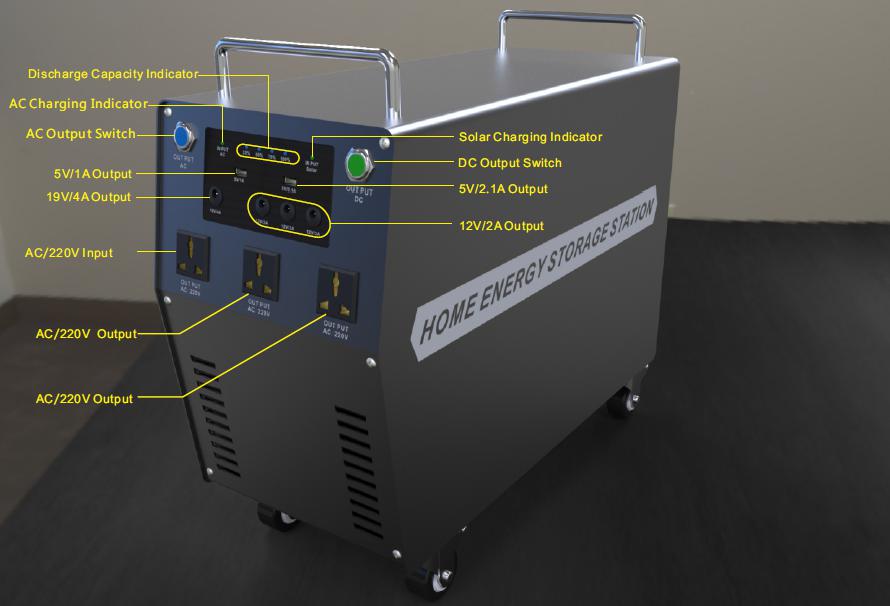

 8. Function  Description

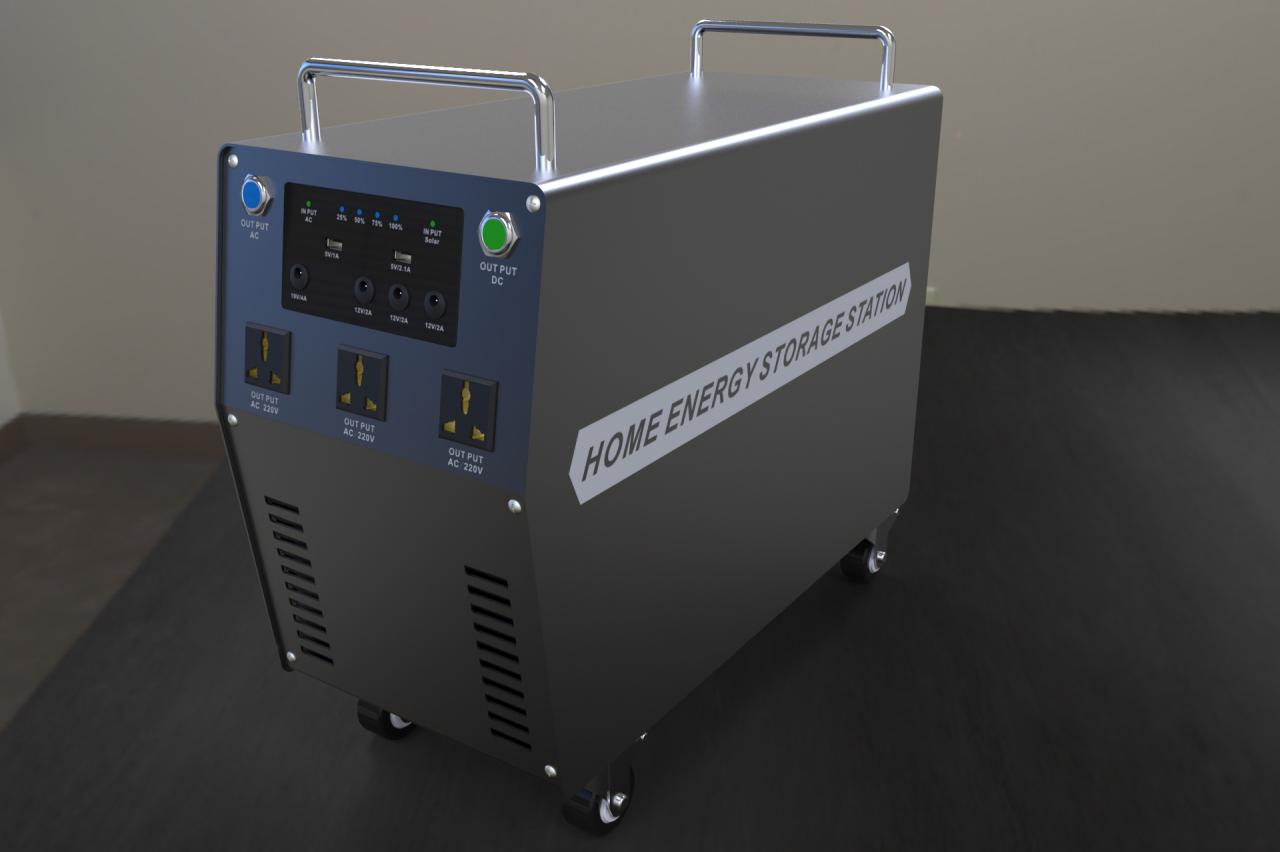

                                                       Front View

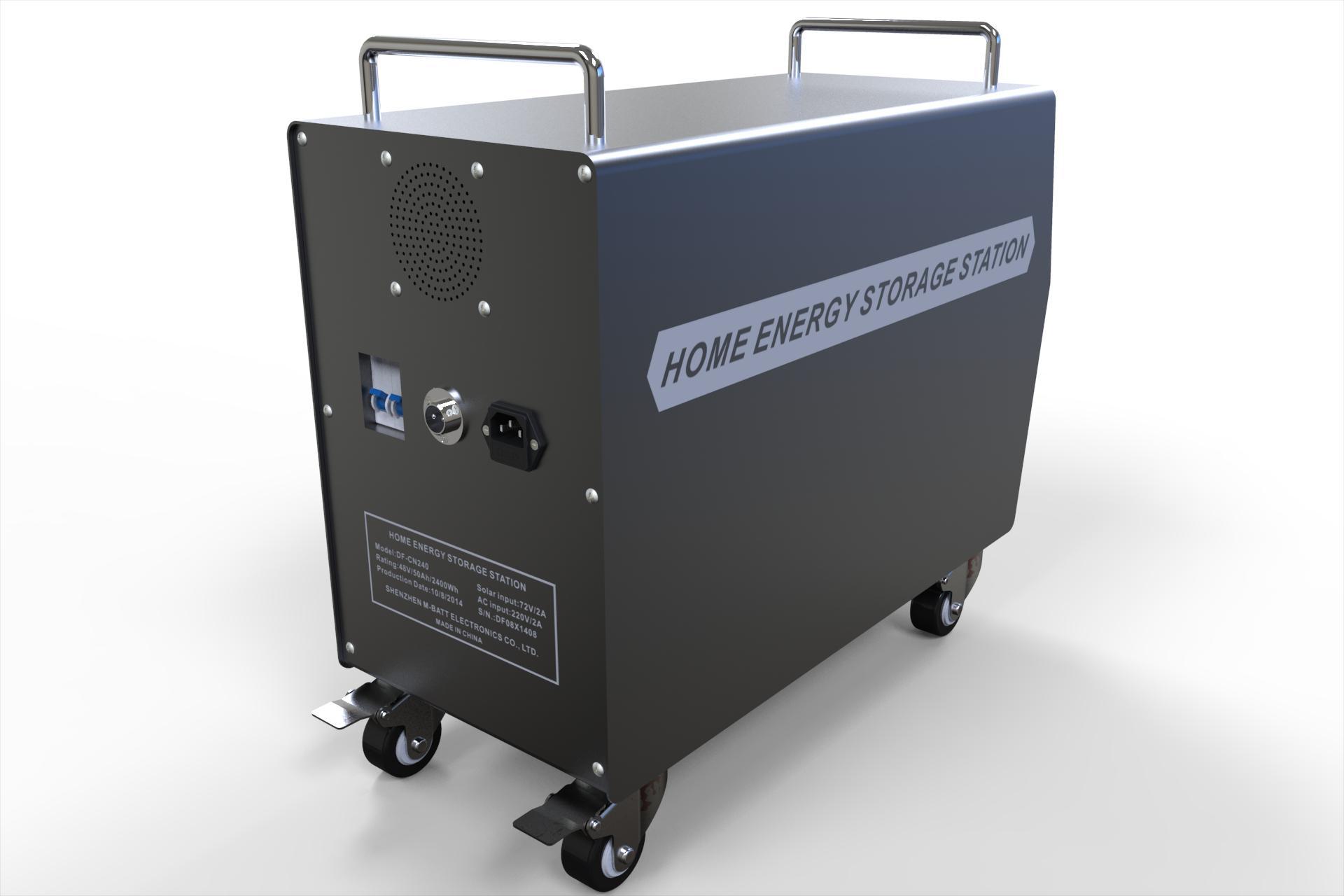

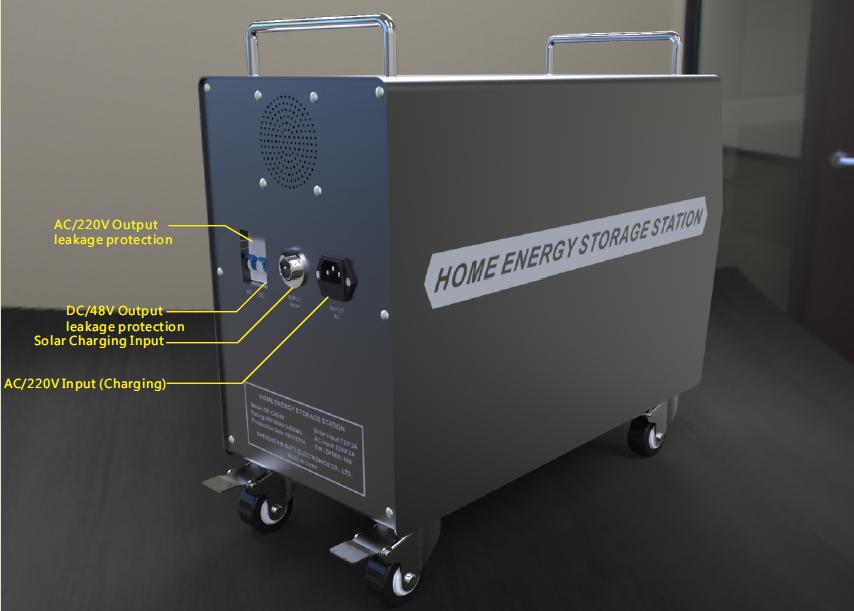

                                                     Back View

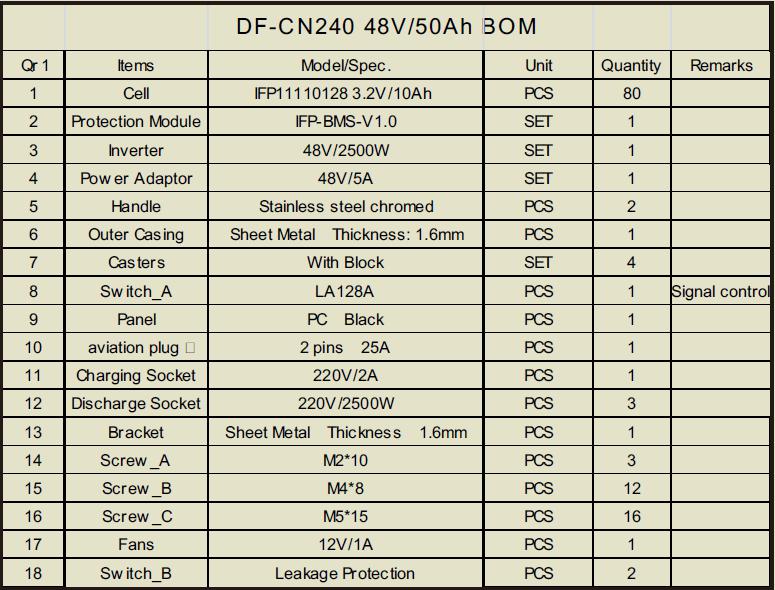

9. BOM(Bill of Materials)
